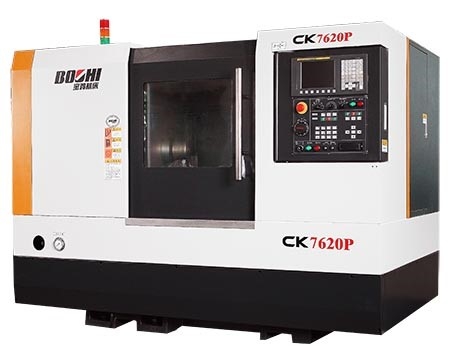

CK7620P CNC lathe watch video
Product Description:

CK7620P CNC lathe, the strength of the whole machine, dynamic and static stiffness, mechanical structure of the main components, protective cooling, safety and other advanced design. The machine adopts high strength cast iron, integral bed structure, inclined guide rail, high precision through-hole spindle structure, vibration resistance design and wide area AC spindle motor, spindle bearing, linear guide gauge, feed screw and bearing and other key components are adopted domestic and foreign famous brand products; Equipped with row type tool rest, it can process all kinds of internal and external cylindrical surface, conical surface, arc surface, inch thread and other processes. The machining accuracy of the machine can reach IT6 level, especially suitable for automobile, motor, bearing, hydraulic and other industries for high-efficiency, high-volume, high-precision processing of rotary body parts.

Technical Specifications:



Item

Unit

Specifications

Capacity

Max swing over bed

mm

φ400

Max swing over slide

mm

φ105

Recommend turning diameter/length

mm

φ100/180

Max turning diameter

mm

φ200

Maximum bar diameter (Hollow chuck/collet)

mm

φ51/φ42



Spindle

Hydraulic chuck diameter

mm

φ210

Spindle nose

GB/T5900.1

A2-6

Spindle thru-hole

mm

φ62

Spindle bearing diameter(front/rear)

mm

φ100/φ90

Spindle speed

r/min

90-4000

Main motor power(cont/30min)

kW

7.5

Carriage

Slant degree

DEG

60°

X/Z-axis travel

mm

400/300

X/Z-axis rapid traverse

mm/min

16/16

Ball screw diameter x/z

mm

φ32/φ40

Turret

Number of stations/ revolving tool stations



6-8

Tool section (turning/boring)

mm

20×20/φ32

Others

Power source

kVA

20

Dimension(L×W×H)

mm

2300×1480×1750

Gross weight

kg

3200
