Home
Products
PRODUCTS
Conventinal lathe

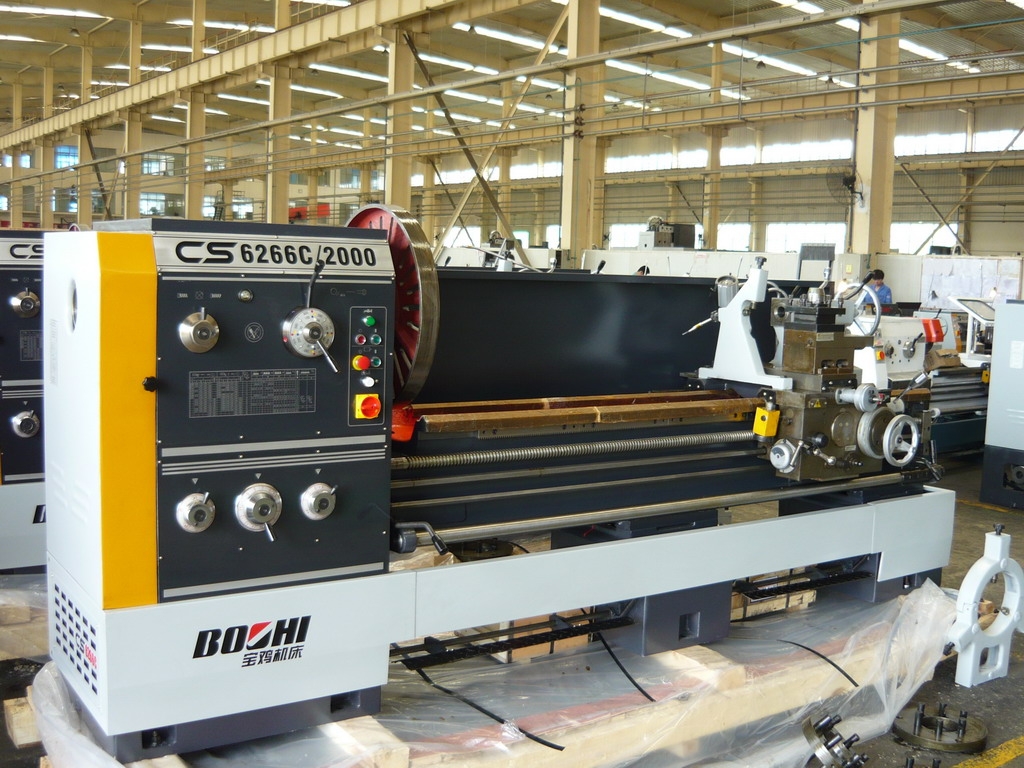

CS61(2)50C/CS61(2)66C
CS61(2)50C/CS61(2)66C watch video
Product Description:

 Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

    Threading Inch, Metric, Module and D.P.;

    Perform drilling, boring and groove broaching;

    Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

    Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

   There are hand brake and foot brake for users to choose;

   These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).


Technical Specifications:

ITEMS

UNIT

CS6150C

CS6250C

CS6166C

CS6266C

Capacity

Max. swing dia. over bed

mm

φ500

φ660

Max. swing dia. over toolpost

mm

φ300

φ420

Max. swing dia. in gap

mm



φ710



φ870

Length in gap

mm



240



240

Max. distance between centers

mm

1000/1500/2000//3000

Max. machining length

mm

950/1450/1950/2950

Spindle

Spindle bore diameter

mm

φ105

Type of spindle nose



ISO 702/Ⅱ No.8

Spindle speed

r/min

12 steps 36-1600

Feed and thread

Max. travel of upper toolpost

mm

145

Max. travel of lower toolpost

mm

320

310

Tool section

mm

25×25

X-axis feeding range

mm/r

65kinds 0.063-2.52

Z-axis feeding range

mm/r

65kinds 0.027-1.07

Metric threads

mm

22 kinds 1-14

Inch threads

t.p.i

25 kinds 28-2

Module threads

πmm

18 kinds 0.5-7

Diametric pitch threads

DP

24 kinds 56-4

Tailstock

Diameter of quill

mm

φ75

Max. travel of quill

mm

150

Taper of quill (Morse)



Morse No.5

Motor

Main motor power

kW

7.5

Cooling pump motor power

kW

0.15

Others

Length

mm

2632/3132/3632/4632

Width

mm

975

Height

mm

1270

1450

Weight

kg

2100/2300/2500/2900

2200/2400/2600/3000
